The Vibroscreen product line offers a range of robust and high-quality portable screeners, which enables a high-level screening process and increased productivity!
Vibroscreen SCM-27
The SCM-27 Vibroscreen is the perfect solution for your small projects. It is ideal for your mini charger with a 1/2″ to 1 cubic yard bucket. The vibrating head with two decks offers a screening capacity up to 60 yards per hour.
The material is loaded from above in the hopper’s superior section. The superior deck is generally used to make a first rough sorting, protect the lower screen, and optimize quality and productivity. The sifted material is found under the hopper, while the coarser material of 2 decks is found on the side of the frame.
- Ideal for loaders measuring 1 yard or less
- Fastness installation
- Hydraulic cylinder to lift or lower the axle
- Vibrating head with two decks 54″x72″
- Adjustable pintle hook
- Electric Brakes
- Headlights
- 9.1HP Diesel Engine
- Electric Starter
- Approx weight of 6300lbs
- 12 Months Motor Warranty
- 12 Months Machine Warranty
Operation Dimensions
- 8″6′ Loading Height
- 6’11” Width of Hopper
- 7’0″ Final Capacity; bucket width
Transport Dimensions
- 9’1″ Travel Height
- 16′ Overall Length
- 6’8″ Overall Width
Vibroscreen SCM-40
The SCM-40 Vibroscreen is ideal for a leader with a bucket of 1 to 3 cubic yards. It has a screen suface of 40 sqare feet. The vibrating head with two decks offers a screeening capacity of up to 100 cubic yards per hour.
The material is loaded from above in the hopper’s superior section. The superior deck is generally used to make a first rough sorting, protect the lower screen, and optimize quality and productivity. The sifted material is found under the hopper, while the coarser material of 2 decks is found on the side of the frame.
- Ideal for loaders measuring 1 to 3 yards
- Fastness installation
- Hydraulic cylinders to lift or lower the axle or the tongue
- Vibrating head with two decks 71″x82″
- Adjustable pintle hook
- Electric Brakes (optional Air Brakes)
- Headlights
- 33HP Diesel Engine
- Electric Starter
- Approx weight of 12000lbs
- 24 Months (2000HR) Motor Warranty
- 12 Months Machine Warranty
Operation Dimensions
- 9’11” Loading Height
- 9’4″ Width of Hopper
- 9’6″ Final Capacity; bucket width
Transport Dimensions
- 10’9″ Travel Height
- 20’3″ Overall Length
- 8’0″ Overall Width
Vibroscreen SCM-75
The SCM-75 Vibroscreen is ideal for a loader with a bucket of 6 cubic yards. The SCM-75 has a screen surface of 75 square feet. The vibrating head with two decks offers a screening capacity of up to 300 cubic yards per hour.
The material is loaded from above in the hopper’s superior section. The superior deck is generally used to make a first rough sorting, protect the lower screen, and optimize quality and productivity. The sifted material is found under the hopper, while the coarser material of 2 decks is found on the side of the frame.
- Ideal for loaders measuring 6 yards
- Fastness installation
- Hydraulic cylinders to lift or lower the axle or the tongue
- Vibrating head with two decks 120″x90″
- Fifth Wheel Hitch
- Air Brakes
- Headlights
- 50HP Diesel Engine
- Electric Starter
- Approx weight of 22000lbs
- 24 Months (2000HR) Motor Warranty
- 12 Months Machine Warranty
Operation Dimensions
- 11’1″ Loading Height
- 12’6″ Width of Hopper
- 12’7″ Final Capacity; bucket width
Transport Dimensions
- 11’11” Travel Height
- 26’4″ Overall Length
- 8’4″ Overall Width
Vibroscreen SCM-40C
The SCM-30C Vibroscreen is ideal for a loader with a bucket of between 1 to 3 cubic yards. The SCM-40C has a screen surface of 40 square feet. The vibrating head with two decks offers a screening capacity of up to 100 cubic yards per hour.
The material is loaded from above in the hopper’s superior section. The superior deck is generally used to make a first rough sorting, protect the lower screen, and optimized quality and productivity. The sifted material is found under the hopper, while the coarser material of 2 decks is found on the side of the frame.
- Ideal for loaders measuring 1 to 3 yards
- Fastness installation
- Hydraulic cylinders to lift or lower the axle or the tongue
- Vibrating head with two decks 71×82″
- Fifth Wheel Hitch
- Air Brakes
- Headlights
- 60HP Diesel Engine
- Electric Starter
- Approx weight of 18000lbs
- 24 Months (2000HR) Motor Warranty
- 12 Months Machine Warranty
Operation Dimensions
- 9’11” Loading Height
- 9’4″ Width of Hopper
- 10’1″ Free Height under the conveyor
- 45’5″ Overall Length
Transport Dimensions
- 10’9″ Travel Height
- 34’1″ Overall Length
- 8’3″ Overall Width
Vibroscreen SCM-75C
The SCM-75C Vibroscreen is ideal for a leader with a bucket measuring 6 cubic yards. The SCM-75C has a screen surface of 75 square feet. The vibrating head with two decks offers a screening capacity of up to 300 cubic yards per hour.
The material is loaded from above in the hopper’s superior section. The superior deck is generally used to make a first rough sorting, protect the lower screen, and optimized quality and productivity. The sifted material is found under the hopper, while the coarser material of 2 decks is found on the side of the frame.
- Ideal for loaders measuring 6 yards
- Fastness installation
- Hydraulic cylinders to lift or lower the axle or the tongue
- Vibrating head with two decks 120″x90″
- Fifth Wheel Hitch
- Air Brakes
- Headlights
- 90HP Diesel Engine
- Electric Starter
- Approx weight of 27500lbs
- 24 Months (2000HR) Motor Warranty
- 12 Months Machine Warranty
Operation Dimensions
- 11’1″ Loading Height
- 12’6″ Width of Hopper
- 10’1″ Free Height under the conveyor
- 48’10” Overall Length
Transport Dimensions
- 11’11” Travel Height
- 37’5″ Overall Length
- 8’4″ Overall Width

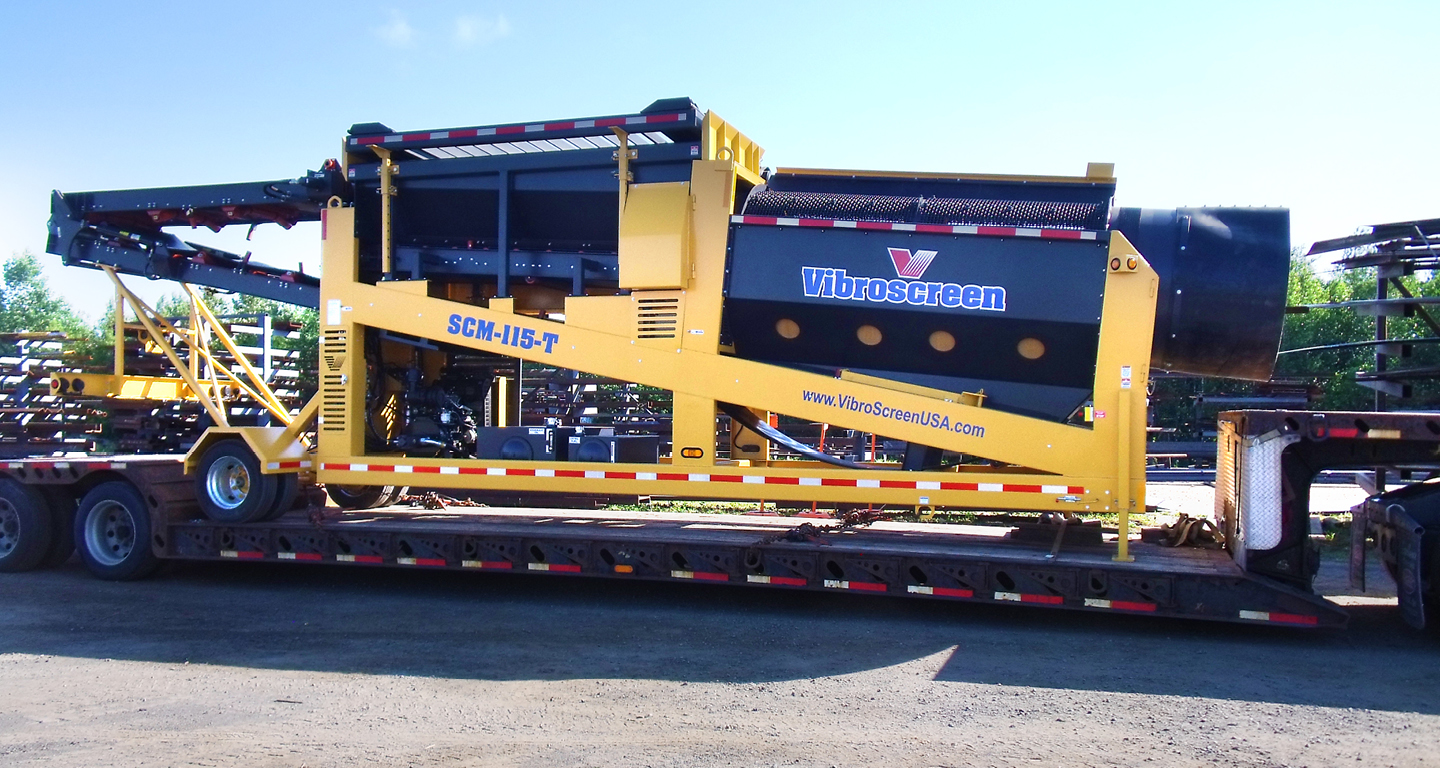

Vibroscreen SCM-115T
The SCM-115T Vibroscreen is ideal for a loader with a bucket measuring 5 cubic yards. The SCM-115T has a screen surface of 115 square feet. The drum of 4′ diameter x 12’3″ offers a capacity of screening of up to 100 cubic yards per hour.
The material is loaded by from above in the hopper’s superior section. The material passes through a hydraulic grizzly integrated with a remote control. The material is fed to the drum by means of a supply conveyor that features an exclusive anti-jam system, which reduces the feeding speed depending on the load in the drum. The drum is driven by four hydraulically independent wheel drives. The screening material is fed by a 30″ wide conveyor that allows stock piling of the screening material of 10’2″
The robust and efficient construction is designed to further a transport and a quick installation, to facilitate the operation and thus minimize operating and maintenance costs.
- Ideal for loaders measuring 5 yards
- Fastness installation
- Hydraulic cylinders to lift or lower the axle or the tongue
- Rotative drum 4′ x 12’3″
- Pintle Hook
- Electric Brakes
- Headlights
- 60HP Diesel Engine
- Electric Starter
- Approx weight of 21900lbs
- 24 Months (2000HR) Motor Warranty
- 12 Months Machine Warranty
Operation Dimensions
- 11’1″ Loading Height
- 12’6″ Width of Hopper
- 10’1″ Free Height under the conveyor
- 48’10” Overall Length
Transport Dimensions
- 11’11” Travel Height
- 37’5″ Overall Length
- 8’4″ Overall Width
